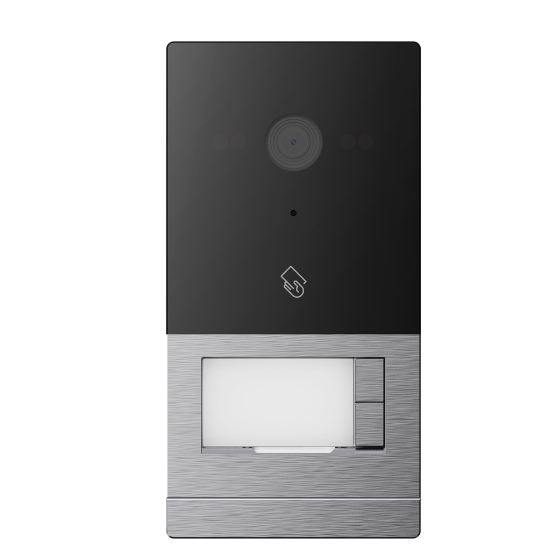

SO005 SIP IP OUTDOOR STATION (2 BUTTON / SURFACE MOUNTED)

(Code: SO005)

The GVS SO005 is a professional 2-call button SIP IP Outdoor Station designed for residential villas, private homes, and small apartment buildings requiring reliable access control and visitor communication.

It features a high-quality CMOS camera for clear real-time video, integrated call buttons, RFID/IC card access control and remote door release functionality. Built with a durable metal housing and weather-resistant design, it is suitable for outdoor installation in demanding environments.

Key Features:

• Designed as an IP-based mini video outdoor station with 2 call buttons
• Supports IC card interaction
• Detects door status and supports unlocking output
• Anti-tamper alarm functionality
• Supports online firmware updates
• Built-in microphone and speaker for two-way communication
• Supports SIP and standard IP network protocols (typical for H-series IP stations)

Technical Specifications

• Camera: CMOS, approx. 0.3 MP / QCIF resolution
• View angle: ~95° diagonal
• Minimum illumination: 0 lux (with white fill light)
• Lens focus: 2.2 mm
• Angle adjustment: ±12° tilt (approx.)
• Working voltage: DC 24 V
• Operating temperature: −20 °C to +55 °C
• Storage temperature: −40 °C to +70 °C
• Dimensions: approx. 120 × 194 × 38.7 mm
