TVT TD-9540S5L-D 4MP DUAL ILLUMINATION OUTDOOR DOME CAMERA 2.8MM, AUDIO

(Code: 8043043)

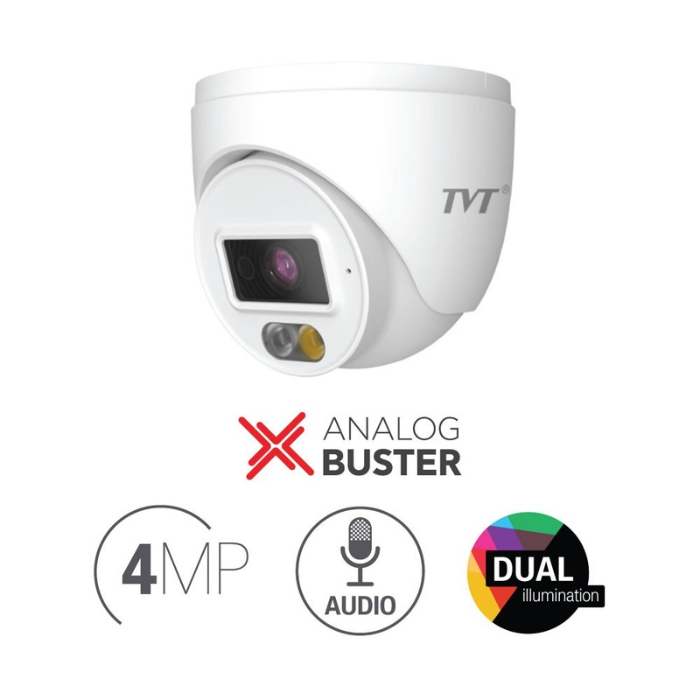

The TD-9540S5L-D is a 4MP Dual Illumination Outdoor Dome Camera equipped with a 2.8mm fixed lens and built-in audio.

It provides high-quality surveillance with smart detection functions and dual lighting technology, combining IR illumination and white light to deliver full-color images when motion or intrusion is detected.

Key Features

• 4.0MP resolution (2560 × 1440) @ 25fps
• Dual Illumination: IR LED + White Light
• Smart Motion Detection with Human Detection
• Area Intrusion and Line Crossing detection
• Automatic switch from B/W IR mode to full-color imaging on events
• 2.8mm fixed lens (90° horizontal FoV)
• Built-in microphone
• H.265+ / H.265 / H.264 / MJPEG dual stream compression
• ONVIF compatible
• IP67 Weatherproof housing for outdoor use
• Simultaneous access for up to 3 users
• Remote monitoring via PC and mobile devices (Android, iPad, iPhone)
• NAT (P2P) Cloud access via QR code
• Recording support via NVR, DVR, NMVS

Technical Specifications

• Image Sensor: 1/3” CMOS
• Maximum Resolution: 2560 × 1440 (4MP)
• Frame Rate: 25fps
• Minimum Illumination
  • 0.014 lux @ F2.0 (AGC ON)
  • 0 lux (Illumination ON
• Lens: 2.8 mm fixed
  • Horizontal FoV: 90°
  • Vertical FoV: 50°
• Night Vision / Lighting Range:
  • White Light: 10–20 m
  • IR LED: 20–30 m
• Video Compression: H.265+ / H.265 / H.264 / MJPEG dual stream
• Network Protocols: UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTMP, DDNS, 802.1x, HTTP, QoS, P2P
• Interface Protocol: ONVIF
• Smart Detection Functions: Motion Detection (with Human Detection), Area Intrusion, Line Crossing
• Image Enhancement: BLC / HLC / DWDR / DNR
• Web Access: Built-in web server
• Audio: Built-in microphone
• Remote Monitoring: PC, Android, iPad, iPhone
• Recording Options: NVR, DVR, NMVS
• Power Supply: PoE (IEEE 802.3af)
• Power Consumption: 5.5W
• Ingress Protection: IP67 (plastic housing)
• Dimensions: Ø 94.8 × 82.8 mm
• Weight: 280 g
• Color: White
• Operating Temperature: -20°C to +55°C
• Compatible Mounts: TD-YXH0103
